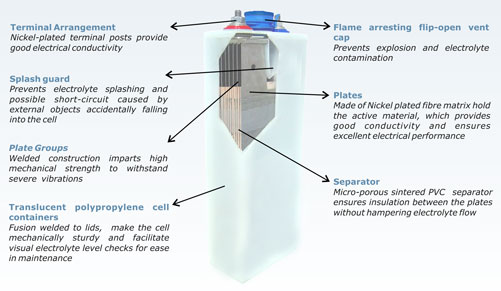

These batteries use Fibre Plate electrodes. The three Dimensional Fibre Structure in the plate provides a very high conducting density. The advantages of this technology is its low internal resistance, high rates of discharge, improved recharge capability and lower weight with a high cycle life.
The Ni-Cad Fibre Plate batteries are designed as L,M,H
and X types to suit customers requirements.
These batteries conform to IEC 60623 and are certified by CSA International.
They also conform to BS6260, DIN 40771 and other International Standards.
Features
- Consistent Voltage Output and stable Capacity over life time
- Long service life and reliable operation
- Can be used in extreme temperature zones
- Ease of recharging the battery
- Ease of handling due to light weight
- Low maintenance and low water consumption
- Excellent for cyclic applications
| Cell Series | Capacity Range Ah | Typical Back-up | Typical Applications |
|---|---|---|---|
L - Low Rate KFL Range (Single & Block) |
20 to 1500 |
Above 3 hours |
Fire alarms, Emergency lighting, Telecom, Railway signalling, Switchgear protection, Photovoltaic, Cathodic protection. |
M
- Medium Rate KFM Range (Single & Block) |
11
to 1391 |
60 minutes to 3 hours |
Switchgear protection, Emergency lighting, Motive power, Train
lighting, |
H
- High Rate KFH Range (Single & Block) |
11
to 1026 |
Below 60 minutes |
Generator
starting, UPS, Diesel locomotive cranking, Aircraft / |
| X
- Ultra High Rate KFX Range (Single & Block) |
11 to 120 | below 10 minnutes |
Diesel locomotive cranking, Genset starting, AGV's |
* Battery
Stands avialable on request.
* Use Optisize 3.2 to size batteries for your application.
