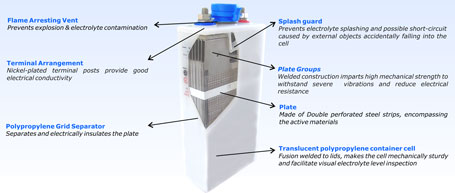

HBL offers a very wide range of Nickel Cadmium
Pocket Plate Batteries that match diverse applications and operating
conditions. These are available in tough polypropylene containers
of single cell types and block battery types. Cells of Stainless
Steel containers or structural foam moulded containers are also
offered as options. Incorporating variations in electrode
design to meet different discharge requirements, HBL batteries are classified into three types L, M & H.
These batteries conform to IEC 60623 and are certified by CSA International.
They also conform to BS6260, DIN 40771 and other International Standards.
Benefits:
- Exceptionally long & reliable service life
- Adaptability to a wide temperature range
- No emission of corrosive gases
- Safe from flame & explosion
- Minimal maintenance
- Low life time cost
- Quick recharging
Range
and Applications
| Cell Type | Capacity Range (Ah) | Typical Back-up |
Typical Applications |
|---|---|---|---|
| L
- Low Rate KPL (Single) KBL (Block) |
|
Above 3 Hours |
Fire
Alarm Panels |
| M
- Medium Rate KPM (Single) KBM (Block) |
10 to 395 12 to 1460 |
60 Minutes to 3 Hours |
Switchgear Protection Instrumentation and Process Control U.P.S. Motive Power Emergency Lighting |
| H
- High Rate KPH (Single) KBH (Block) |
10 to 265 |
Below
60 Minutes |
Generator Starting U.P.S. Diesel Locomotive Cranking Electro Magnets |
* Use Optisize 3.2 to size batteries for your application.
